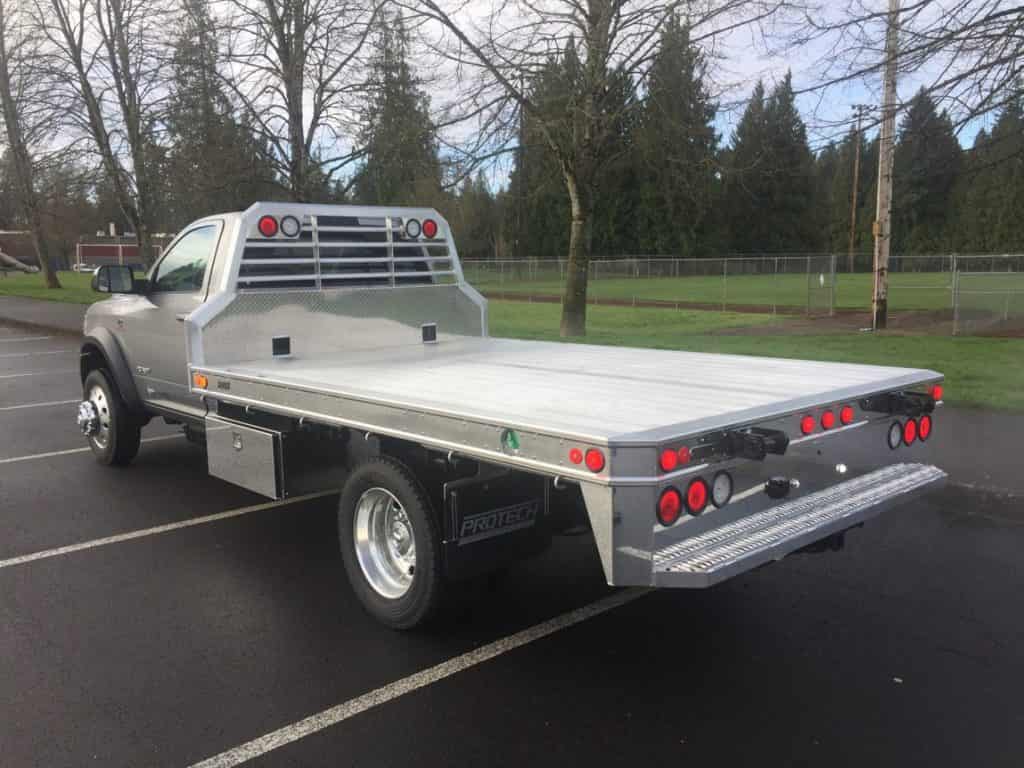

PROTECH® RANCHER BODIES are ready to help make any chore for a rural truck go better. Haul firewood. Then lug hay. And, after an easy wash-down, turn it into a feed truck.

FARM AND RANCH BODIES:
• Available in standard sizes for single or dual rear wheel pickup chassis
• Have headboards shaped for visibility, with aluminum tubes that offer handy, yet strong tie-off points
• Eliminate deck flex and weld cracking. There are no deck welds. Full-length, marine-grade aluminum tongue and groove locking I-beams are secured with rivets that retain parent metal strength

INCLUDED:
• 13” X 14” gooseneck trailer hitch trapdoor access — centerline is 2” cabside of axle
• LED lights — stop, turn, backup, plate, side and running
• One fuel-filler cup in the side rail

And when the old truck goes on waivers, the ProTech Rancher Body can move over to the next truck and be ready for more hard work. Just like a trusted friend.

Request a flatbed Start your request

ProTech flatbeds are extraordinary.

The standard floor is built with 1.25” interlocking tongue and groove, extruded aluminum deck boards and 5” zee 6061-T6 aluminum-alloy structural cross-members. This combination virtually eliminates racking and supports a load capacity of 1,000 ponds per linear
foot. Not enough? Give us your target. We’ll design and build it.

All flatbed structural attachments use Huck-Clinch® aircraft style mechanical fasteners. These aerospace blind rivets meet the sheet take-up and hole fill of the military for enhanced fatigue performance and vibration resistance. Since these special rivets retain the parent metal strength, attachments don’t loosen and are not subject to racking and expansion/contraction cracking like welded beds.

ProTech flatbeds are available in any length — most range between 9’ and 24’. Deck widths are typically 84”, 93” and 96”, with extruded floor body widths in 3” increments. The stake pockets are located at cross members to retain structural integrity and stake-member support. Side rails are polished, proprietary extrusions — rather than standard C-channel — with TIG-welded, cleaned and buffed corners to reflect your professional appearance.

ProTech flatbeds have a 5-year limited warranty
