    Underbody Boxes
  • Polished double swing door underbody box
    Double Swing under body box
Underbody Boxes

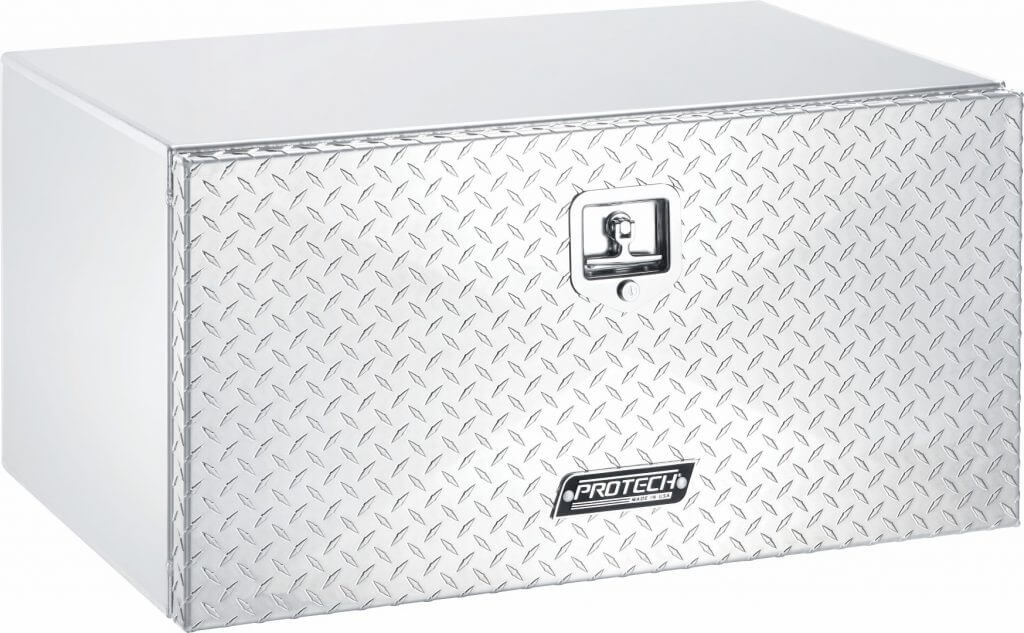

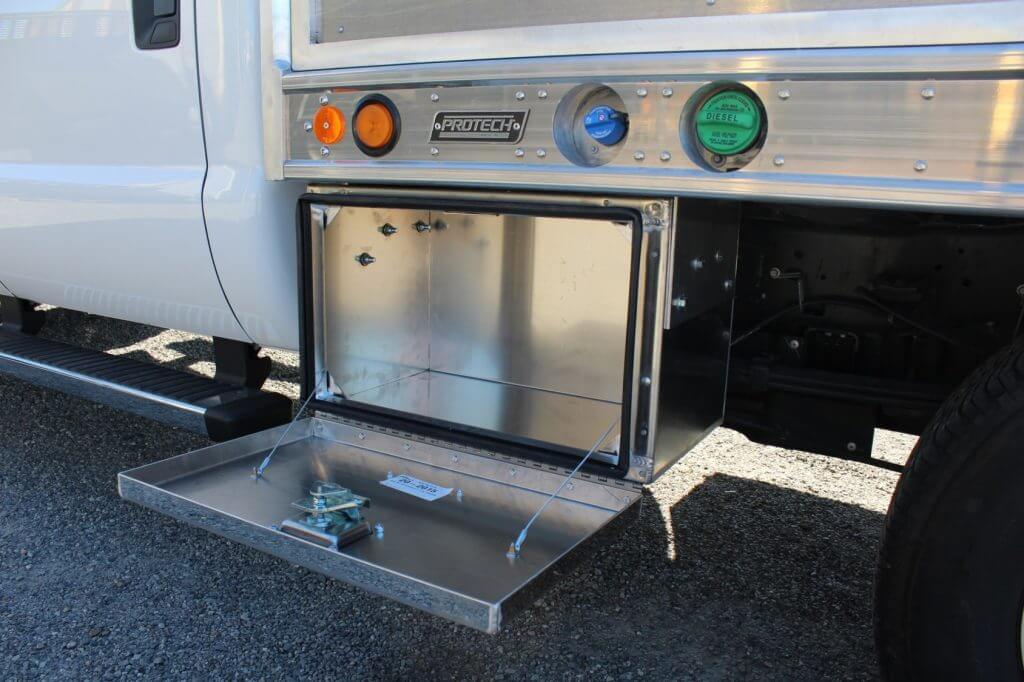

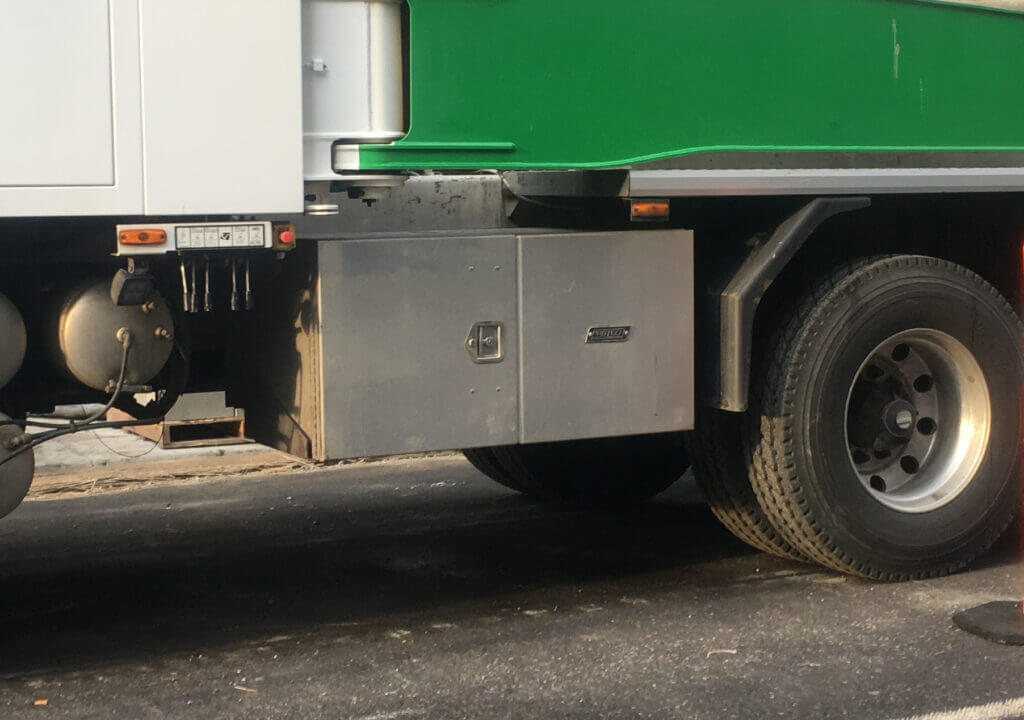

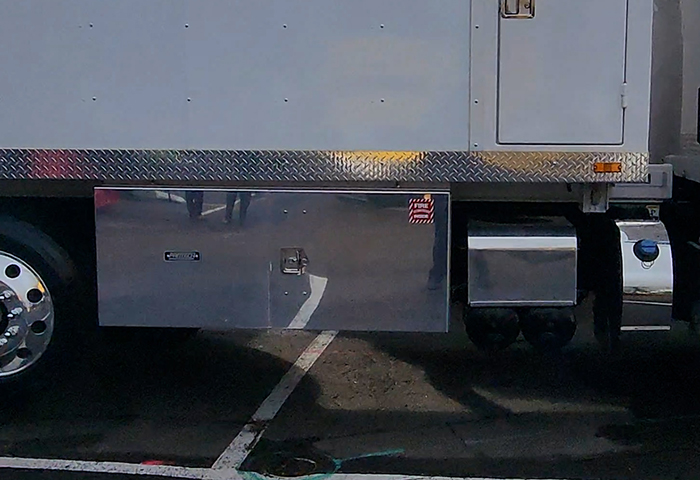

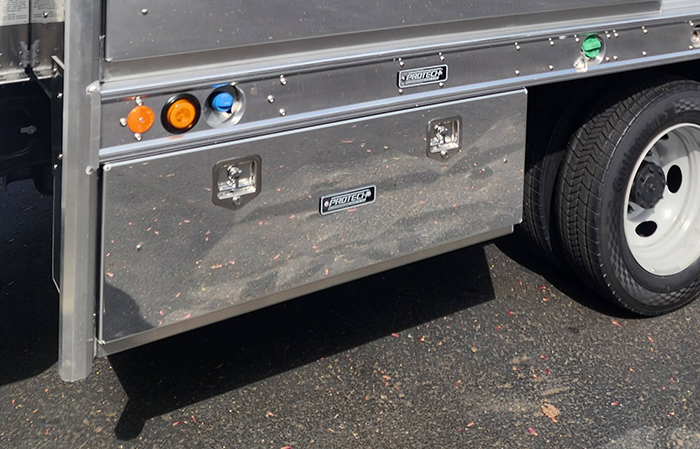

ProTech® Underbody Storage Boxes are secure, and weather resistant built for heavy-duty use on vocational semi-trucks and Flatbed trucks. Available in aluminum or steel, these rugged storage boxes come in 31 standard sizes with 18″ and 24″ depths ranging from 18″ to 72″ wide. Additional configurations include six 15″H x 15″D options in 18″, 24″, and 30″ widths.

Designed for flexible truck storage layouts, ProTech Underbody Boxes are available in Polished Aluminum, Gloss Black, Gloss White, and Matte Textured Black. If you don’t see the size or style you need, we can build it.

TOOLBOX FRAME MOUNTING KITS
Kits are black powder coated steel and installed with the longer leg placed vertically.
20-9710: BRACKETS FOR 18” DEEP BOXES $ 180.00
20-9700: BRACKETS FOR 20” DEEP BOXES $ 180.00
20-9720: BRACKETS FOR 30” DEEP BOXES $ 190.00

Download Catalog
Where to Buy See all
Part Number Description H" D" L" LBS MSRP
20-2004 UNDERBODY BOX AL 24X24X24 DROP DOWN DOOR 24 24 24 55 $1,240.00
20-2004D UNDERBODY BOX AL 24WX24DX24H DIAPLT SINGLE DROP-DOWN DOOR 24 24 24 55 $1,200.00
20-2004DL UNDERBODY BOX AL 24X24X24 LHO DIAMPT ALPLT DOOR 24 24 24 55 $1,180.00
20-2004DR UNDERBODY BOX AL 24X24X24 RHO DIAMPT ALPLT DOOR 24 24 24 55 $1,180.00
20-2004L UNDERBODY BOX AL 24X24X24 LHO DOOR 24 24 24 55 $1,220.00
20-2004R UNDERBODY BOX AL 24X24X24 RHO DOOR 24 24 24 55 $1,220.00
20-2004SS UNDERBODY BOX AL 24X24X24 SST STL DOOR 24 24 24 55 $1,260.00
20-2004SSL UNDERBODY BOX AL 24HX24DX24L LHO SST DOOR 24 24 24 55 $1,250.00
20-2004SSR UNDERBODY BOX AL 24HX24DX24L RHO SS DOOR 24 24 24 55 $1,250.00
20-2005 UNDERBODY BOX AL 24X24X30 DROP DOOR 24 24 30 62 $1,280.00
20-2005D UNDERBODY BOX AL 24X24X30 DIAMPT ALPLT DROP DOOR 24 24 30 62 $1,240.00
20-2005DL UNDERBODY BOX AL 24X24X30 LHO DIAMPT AL PLT DOOR 24 24 30 62 $1,220.00
20-2005DR UNDERBODY BOX AL 24X24X30 RHO DIAMPT AL PLT DOOR 24 24 30 62 $1,220.00
20-2005L UNDERBODY BOX AL 24X24X30 LHO DOOR 24 24 30 62 $1,280.00
20-2005R UNDERBODY BOX AL 24X24X30 RHO DOOR 24 24 30 62 $1,280.00
20-2005SS UNDERBODY BOX AL 24X24X30 ST/ST DOOR 24 24 30 65 $1,300.00
20-2005SSL UNDERBODY BOX AL 24HX24DX30L SST SWING DR LHO 24 24 30 65 $1,290.00
20-2005SSR UNDERBODY BOX AL 24HX24DX30L SST SWNG DR RHO 24 24 30 65 $1,290.00
20-2009 UNDERBODY BOX AL 15X12X18LG T-LK 1DRPDR 15 12 18 24 $790.00
20-2009-GB UNDERBODY BOX AL 15HX12DX18L DRP DRT-LCK PWDRCOAT GLOSS BLACK 15 12 18 24 $1,020.00
20-2009D UNDERBODY BOX AL 15X12X18LG T-LK 1DIAMPT AL DRPDR 15 12 18 24 $750.00
20-2010 UNDERBODY BOX AL 15X12X24LG T-LK 1DRPDR 15 12 24 29 $830.00
20-2010-GB UNDERBODY BOX AL 15X12X24LG T-LK 1DRPDR PWDRCOAT GLOSS BLACK 15 12 24 29 $1,060.00
20-2010D UNDERBODY BOX AL 15X12X24LG T-LK 1DIAMPT AL DRPDR 15 12 24 29 $790.00
20-2011 UNDERBODY BOX AL 15X12X30LG T-LK 1DRPDR 15 12 30 37 $870.00
20-2011D UNDERBODY BOX AL 15X12X30LG T-LK 1DIAMPT AL DRPDR 15 12 30 37 $830.00
20-2013 UNDERBODY BOX AL 15X15X18 T-LK SGL DRPDR 15 15 18 26 $830.00
20-2013D UNDERBODY BOX AL 15X15X18 T-LK SGL DIAMPT ALPL DOOR 15 15 18 26 $790.00
20-2013L UNDERBODY BOX AL 15HX15DX18L SWNG DR LHO T-LCK 15 15 18 26 $820.00
20-2013R UNDERBODY BOX AL 15HX15DX18L SWING DOOR RHO T-LCK 15 15 18 26 $820.00
20-2015 UNDERBODY BOX AL 15X15X24 T-LK SINGLE DROP DOOR 15 15 24 31 $870.00
20-2015D UNDERBODY BOX AL 15X15X24 T-LK SGL DIAMPT ALPL DOOR 15 15 24 31 $830.00
20-2015L UNDERBODY BOX AL 15X15X24 T-LK SGL SIDE SWG DR LHO 15 15 24 31 $860.00
20-2015R UNDERBODY BOX AL 15X15X24 T-LK SGL SIDESWG DR RHO 15 15 24 31 $860.00
20-2017 UNDERBODY BOX AL 15X15X30 T-LK SINGLE DROP DOOR 15 15 30 39 $910.00
20-2017-GB UNDERBODY BOX AL 15HX15DX30L DRP DRT-LCK PWDRCOAT GLOSS BLACK 15 15 30 39 $1,140.00
20-2017D UNDERBODY BOX AL 15X15X30 T-LK SGL DIAMPT ALPL DOOR 15 15 30 39 $870.00
20-2017L UNDERBODY BOX AL 15X15X30 T-LK SGL SIDE SWG DR LHO 15 15 30 39 $900.00
20-2017R UNDERBODY BOX AL 15X15X30 T-LK SGL SIDESWG DR RHO 15 15 30 39 $900.00
20-2023 UNDERBODY BOX AL15HX18DX18L POLISHED AL DRP DR 15 18 18 28 $870.00
20-2023D UNDERBODY BOX AL15HX18DX18L DA DRP DR 15 18 18 28 $820.00
20-2025 UNDERBODY BOX AL15HX18DX24L POLISHED AL DRP DR 15 18 24 33 $910.00
20-2025D UNDERBODY BOX AL15HX18DX24L DA DRP DR 15 18 24 33 $870.00
20-2027 UNDERBODY BOX AL 15HX18DX30L POLISHED AL DRP DR 15 18 30 41 $950.00
20-2027D UNDERBODY BOX AL 15HX18DX30L DA DRP DR 15 18 30 41 $900.00
20-2068 BOXAL18X18X18POL DROP DR 18 18 18 31 $940.00
20-2068-GB BOXAL18HX18DX18LDRP DRPWDRCOAT GLOSS BLACK 18 18 18 31 $1,170.00
20-2068-TB BOXAL18HX18DX18LDPR DRPWDRCOAT TEXTURED BLACK 18 18 18 31 $1,170.00
20-2068D BOX AL 18X18X18 DIAMPT ALPLT DRPDR 18 18 18 31 $900.00
20-2068DL BOX AL 18X18X18 DIAMPT AL SWING DOOR LHO 18 18 18 31 $880.00
20-2068DR BOX AL 18X18X18 DIAMPT AL SWING DOOR RHO 18 18 18 31 $880.00
20-2068L BOX AL 18X18X18 SWING DOOR LHO 18 18 18 31 $920.00
20-2068R BOX AL 18X18X18 SWING DOOR RHO 18 18 18 31 $920.00
20-2068SS BOX AL 18X18X18 ST/ST DRPDR 18 18 18 31 $960.00
20-2070 BOXAL18X18X24POL DROP DR 18 18 24 37 $980.00
20-2070-GB BOXAL18HX18DX24LDRP DRPWDRCOAT GLOSS BLACK 18 18 24 37 $1,210.00
20-2070D BOX AL 18X18X24 DIAMPT ALPLT DRPDR 18 18 24 37 $940.00
20-2070DL BOX AL 18X18X24 DIAMPT ALPLT LHO DOOR 18 18 24 37 $920.00
20-2070DR BOX AL 18X18X24 DIAMPT ALPLT RHO DOOR 18 18 24 37 $920.00
20-2070L BOX AL 18X18X24 LHO DOOR 18 18 24 37 $960.00
20-2070R BOX AL 18X18X24 RHO DOOR 18 18 24 37 $960.00
20-2070SS BOX AL 18X18X24 ST/ST DOOR 18 18 24 37 $1,000.00
20-2070SSL BOXAL18HX18DX24LSS SWNG DOORLHO 18 18 24 37 $990.00
20-2070SSR BOXAL18HX18DX24LSS SWNG DOORRHO 18 18 24 37 $990.00
20-2073 BOX AL 18X18X30 DRPDR 18 18 30 43 $1,020.00
20-2073-GB BOXAL18HX18DX30LDRP DRPWDRCOAT GLOSS BLACK 18 18 30 43 $1,250.00
20-2073D BOX AL 18X18X30 DIAMPT ALPLT DRPDR 18 18 30 43 $980.00
20-2073D-GB BOXAL18X18X30DIAMPT ALPLT DRPDRPWDRCOAT GLOSS BLACK 18 18 30 43 $1,210.00
20-2073DL BOX AL 18X18X30 DIAMPT ALPLT LHO DOOR 18 18 30 43 $960.00
20-2073DR BOX AL 18X18X30 DIAMPT ALPLT RHO DOOR 18 18 30 43 $960.00
20-2073L BOX AL 18X18X30 LHO DOOR 18 18 30 43 $1,000.00
20-2073R BOX AL 18X18X30 RHO DOOR 18 18 30 43 $1,000.00
20-2073R-GW UNDERBODY BOX AL18HX18DX30L SWNG DR RHO PWDRCOAT GLOSS WHITE 18 18 30 43 $1,240.00
20-2073SS BOX AL 18X18X30 ST/ST DOOR 18 18 30 43 $1,040.00
20-2090 UNDERBODY BOX AL 18T 24D 24L DRPDR 18 24 24 46 $1,140.00
20-2090D UNDERBODY BOX AL 18X24X24 DIAMPT ALPLT DRPDR 18 24 24 46 $1,100.00
20-2090DL UNDERBODY BOX AL 18X24X24 LHO DIAMPT ALPLT DOOR 18 24 24 46 $1,090.00
20-2090DR UNDERBODY BOX AL 18X24X24 RHO DIAMPT ALPLT DOOR 18 24 24 46 $1,090.00
20-2090L UNDERBODY BOX AL 18X24X24 LHO DOOR 18 24 24 46 $1,130.00
20-2090R UNDERBODY BOX AL 18X24X24 RHO DOOR 18 24 24 46 $1,130.00
20-2090SS BOX AL 18T 24D 24L STNL/STL DROP DOOR 18 24 24 46 $1,170.00
20-2093 UNDERBODY BOX AL 18X24X30 DROP DOOR 18 24 30 52 $1,180.00
20-2093D UNDERBODY BOX AL 18HX24DX30L DIAMPT ALPLT DROP DOOR 18 24 30 52 $1,140.00
20-2093DL UNDERBODY BOX AL 18HX24DX30L DIAMPT ALPLT LHO DOOR 18 24 30 52 $1,130.00
20-2093DR UNDERBODY BOX AL 18HX24DX30L DIAMPT ALPLT RHO DOOR 18 24 30 52 $1,130.00
20-2093L UNDERBODY BOX AL 18HX24DX30L LHO DOOR 18 24 30 52 $1,170.00
20-2093R UNDERBODY BOX AL18HX24DX30L RHO DOOR 18 24 30 52 $1,170.00
20-2093SS UNDERBODY BOX AL18HX24DX30L ST/ST DROP DOOR 18 24 30 52 $1,210.00
20-2104 UNDERBODY BOX AL 24X24X36 DROP DOOR 24 24 36 72 $1,320.00
20-2104D UNDERBODY BOX AL 24X24X36 DIAMPT ALPLT DRPDR 24 24 36 72 $1,280.00
20-2104DL BOX AL 24X24X36 DIAMPT ALPLT LHO DOOR 24 24 36 72 $1,260.00
20-2104DR BOX AL 24X24X36 DIAMPT ALPLT RHO DOOR 24 24 36 72 $1,260.00
20-2104L BOX AL 24X24X36 LHO DOOR 24 24 36 72 $1,300.00
20-2104R BOX AL 24X24X36 RHO DOOR 24 24 36 72 $1,300.00
20-2104SS BOX AL 24X24X36 STNLSS STL DOOR 24 24 36 72 $1,340.00
20-2114DL BOX AL 24X24X36 DIAMPT ALPLT LHO DBLDOOR 24 24 36 75 $1,380.00
20-2114DR BOX AL 24X24X36 DIAMPT ALPLT RHO DBLDOOR 24 24 36 75 $1,380.00
20-2114L BOX AL 24X24X36 LHO DBL DOOR 24 24 36 75 $1,420.00
20-2114R BOX AL 24X24X36 RHO DBL DOOR 24 24 36 75 $1,420.00
20-2114SSL BOXAL24HX24DX36LSS DBL DOORLHO 24 24 36 77 $1,540.00
20-2114SSR BOXAL24HX24DX36LSS DBL DOORRHO 24 24 36 77 $1,540.00
20-2170 BOX AL 18X18X36 POL DROP DR 18 18 36 48 $1,060.00
20-2170-GB BOXAL18HX18DX36LDRP DRPWDRCOAT GLOSS BLACK 18 18 36 48 $1,290.00
20-2170-TB BOXAL18HX18DX36LDRP DRPWDRCOAT TEXTURED BLACK 18 18 36 48 $1,290.00
20-2170D BOX AL 18X18X36 DIAMPT ALPLT DRPDR 18 18 36 48 $1,020.00
20-2170DL BOX AL 18X18X36 DIAMPT ALPLT LHO DOOR 18 18 36 48 $1,000.00
20-2170DR BOX AL 18X18X36 DIAMPT ALPLT RHO DOOR 18 18 36 48 $1,000.00
20-2170L BOX AL 18X18X36 LHO DOOR 18 18 36 48 $1,040.00
20-2170R BOX AL 18X18X36 RHO DOOR 18 18 36 48 $1,040.00
20-2170SS BOX AL 18X18X36 STAINLESS DOOR 18 18 36 48 $1,080.00
20-2175DL BOX AL 18X18X36 DIAMPT ALPLT LHO DBL DOOR 18 18 36 59 $1,120.00
20-2175DR BOX AL 18X18X36 DIAMPT ALPLT RHO DBL DOOR 18 18 36 59 $1,120.00
20-2175L BOX AL 18X18X36 LHO DBL DOOR 18 18 36 59 $1,160.00
20-2175L-GB BOXAL18HX18DX36LLHO DBL SWNG DRPWDRCOAT GLOSS BLACK 18 18 36 59 $1,390.00
20-2175R BOX AL 18X18X36 RHO DBL DOOR 18 18 36 59 $1,160.00
20-2190 BOX AL 18X24X36 DRPDR 18 24 36 75 $1,220.00
20-2190D BOX AL 18X24X36 DIAMPT ALPLT DRPDR 18 24 36 75 $1,180.00
20-2190DL BOX AL 18X24X36 DIAMPT ALPLT LHO DOOR 18 24 36 75 $1,170.00
20-2190DR BOX AL 18X24X36 DIAMPT ALPLT RHO DOOR 18 24 36 75 $1,170.00
20-2190L BOX AL 18X24X36 LHO DOOR 18 24 36 75 $1,210.00
20-2190R BOX AL 18X24X36 RHO DOOR 18 24 36 75 $1,210.00
20-2190SS BOX AL 18X24X36 STNLS STL DOOR 18 24 36 75 $1,250.00
20-2195DL BOX AL 18X24X36 DIAMPT ALPLT LHO DBLDOOR 18 24 36 61 $1,280.00
20-2195DR BOX AL 18X24X36 DIAMPT ALPLT RHO DBLDOOR 18 24 36 61 $1,280.00
20-2195L BOX AL 18X24X36 LHO DBL DOOR 18 24 36 61 $1,320.00
20-2195R BOX AL 18X24X36 RHO DBL DOOR 18 24 36 61 $1,320.00
20-2204 BOX AL 24X24X48 DRPDR 24 24 48 90 $1,440.00
20-2204D BOXAL24X24X48DIAMPT ALPLT DRPDR 24 24 48 90 $1,360.00
20-2204SS BOX AL 24X24X48 ST/ST DOOR 24 24 48 90 $1,490.00
20-2214DL BOX AL 24X24X48 DIAMPT ALPLT LHO DBLDOOR 24 24 48 90 $1,460.00
20-2214DR BOX AL 24X24X48 DIAMPT ALPLT RHO DBLDOOR 24 24 48 90 $1,460.00
20-2214L BOXAL24X24X48LHO DBL DOOR 24 24 48 90 $1,540.00
20-2214L-GB UNDERBODY BOX AL 24HX24DX48L DBL SWNG DR LHO PWDRCOAT GLOSS BLACK 24 24 48 90 $1,770.00
20-2214R BOXAL24X24X48RHO DBL DOOR 24 24 48 90 $1,540.00
20-2214R-GB UNDERBODY BOX AL 24HX24DX48L DBL SWNG DR RHO PWDRCOAT GLOSS BLACK 24 24 48 90 $1,770.00
20-2214SSL UNDERBODY BOX AL24HX24DX48L SS DBL DR LHO 24 24 48 92 $1,620.00
20-2214SSR UNDERBODY BOX AL24HX24DX48L SS DBL DR RHO 24 24 48 92 $1,620.00
20-2270 BOX AL 18X18X48 POL DROP DR 18 18 48 55 $1,180.00
20-2270-GB BOXAL18HX18DX48LDRP DRPWDRCOAT GLOSS BLACK 18 18 48 55 $1,410.00
20-2270-GW BOXAL18HX18DX48LDRP DRPWDRCOAT GLOSS WHITE 18 18 48 55 $1,410.00
20-2270-TB BOXAL18HX18DX48LDRP DRPWDRCOAT TEXTURED BLACK 18 18 48 55 $1,410.00
20-2270D BOX AL 18X18X48 DIAMPT ALPLT DRPDR 18 18 48 55 $1,100.00
20-2270SS BOX AL 18X18X48 STNLS STL DOOR 18 18 48 55 $1,230.00
20-2270SSLP BOX AL 18X18X48 SS DOOR W/DIVIDERADJ SHELF 18 18 48 55 $1,580.00
20-2275DL BOX AL 18X18X48 DIAMPT ALPLT LHO DBLDOOR 18 18 48 61 $1,200.00
20-2275DR BOX AL 18X18X48 DIAMPT ALPLT RHO DBLDOOR 18 18 48 61 $1,200.00
20-2275L BOX AL 18X18X48 LHO DBL DOOR 18 18 48 61 $1,310.00
20-2275R BOX AL 18X18X48 RHO DBL DOOR 18 18 48 61 $1,310.00
20-2290 BOX AL 18HX24DX48L DRPDR 18 24 48 75 $1,340.00
20-2290D BOX AL 18HX24DX48L DIAMPT ALPLT DRPDR 18 24 48 75 $1,260.00
20-2290SS BOX AL 18HX24DX48L STNLS STL DOOR 18 24 48 75 $1,400.00
20-2295DL BOX AL 18HX24DX48L DIAMPT ALPLT LHO DBL DOOR 18 24 48 70 $1,360.00
20-2295DR BOX AL 18HX24DX48L DIAMPT ALPLT RHO DBL DOOR 18 24 48 70 $1,360.00
20-2295L BOX AL 18HX24DX48L LHO DBL DOOR 18 24 48 70 $1,440.00
20-2295R BOX AL 18HX24DX48L RHO DBL DOOR 18 24 48 70 $1,440.00
20-2295SSL UNDERBODY BOX AL18HX24DX48L SS DBL DRS LHO 18 24 48 75 $1,530.00
20-2295SSR UNDERBODY BOX AL 18HX24DX48L SS DBL DRS RHO 18 24 48 75 $1,530.00
20-2304 BOX AL 24X24X60 DRPDR 24 24 60 105 $1,540.00
20-2304D BOX AL 24X24X60 DIAMPT ALPLT DRPDR 24 24 60 105 $1,460.00
20-2304SS BOX AL 24X24X60 STNLS STL DOOR 24 24 60 105 $1,590.00
20-2314DL BOX AL 24X24X60 LHO DIAMPT AL PLT DBLDOOR 24 24 60 107 $1,590.00
20-2314DR BOX AL 24X24X60 RHO DIAMPT AL PLT DBLDOOR 24 24 60 107 $1,590.00
20-2314L BOXAL24X24X60LHO DBL DOOR 24 24 60 107 $1,670.00
20-2314R BOXAL24X24X60RHODBL DOOR 24 24 60 107 $1,670.00
20-2314R-GB UNDERBODY BOX AL24HX24DX60L DBL DR RHO PWDRCOAT GLOSS BLACK 24 24 60 107 $1,900.00
20-2370 BOX AL 18X18X60 POL DROP DR 18 18 60 73 $1,280.00
20-2370D BOX AL 18X18X60 DIAMPT ALPLT DRPDR 18 18 60 73 $1,200.00
20-2370SS BOX AL 18X18X60 STNLS STL DRPDR 18 18 60 73 $1,330.00
20-2375DL BOX AL 18X18X60 DIAMPT ALPLT LHO DBL DOOR 18 18 60 70 $1,330.00
20-2375DR BOX AL 18X18X60 DIAMPT ALPLT RHO DBL DOOR 18 18 60 70 $1,330.00
20-2375L BOX AL 18X18X60 LHO DBL DOOR 18 18 60 70 $1,410.00
20-2375R BOX AL 18X18X60 RHO DBL DOOR 18 18 60 70 $1,410.00
20-2375SSL BOXAL18HX18DX60LSS DBL SWING DRSLHO 18 18 60 70 $1,460.00
20-2375SSR BOX AL18HX18DX60L SS DBL SWING DRS RHO 18 18 60 70 $1,460.00
20-2390 BOX AL 18HX24DX60L DRPDR 18 24 60 80 $1,440.00
20-2390D BOX AL 18HX24DX60L DIAMPT ALPLT DRPDR 18 24 60 80 $1,360.00
20-2390SS BOXAL18HX24DX60LSTNLSSTL DOOR 18 24 60 80 $1,500.00
20-2395L BOX AL 18HX24DX60L LHO DBL DOOR 18 24 60 90 $1,580.00
20-2395R BOX AL 18HX24DX60L RHO DBL DOOR 18 24 60 90 $1,580.00
20-2395SSL UNDERBODY BOX AL 18HX24DX60L SS DBL DRS LHO 18 24 60 95 $1,630.00
20-2395SSR UNDERBODY BOX AL18HX24DX60L SS DBL DRS RHO 18 24 60 95 $1,630.00
20-2604 BOX AL 24X24X72 DRPDR 24 24 72 125 $1,650.00
20-2604D BOX AL 24X24X72 DIAMPT ALPLT DRPDR 24 24 72 125 $1,570.00
20-2604SS BOX AL 24X24X72 STNLSS STL DOOR 24 24 72 125 $1,700.00
20-2614DL BOXAL24HX24DX72LDIAMPT AL PLTDBL SWNG DRSLHOLNGLIP 24 24 72 121 $1,700.00
20-2614DR BOX AL 24X24X72 RHO 2 DIAMPT ALPLT DOOR 24 24 72 121 $1,700.00
20-2614L BOX AL 24X24X72 LHO2DR LNGLIP 24 24 72 121 $1,780.00
20-2614R BOX AL 24X24X72 RHO2DR LNGLIP 24 24 72 121 $1,780.00
20-2614SSL UNDERBODY BOX AL 24HX24DX72L SS DBL SWNG DRS LHO LNGLIP 24 24 72 121 $1,840.00
20-2614SSR UNDERBODY BOX AL 24HX24DX72L SS DBL SWNG DRS RHO LNGLIP 24 24 72 121 $1,840.00
20-2670 BOX AL 18X18X72 POL DROP DR 18 18 72 85 $1,390.00
20-2670-TB BOXAL18HX18DX72LSGL DRP DRPWDRCOAT TEXTURED BLACK 18 18 72 85 $1,620.00
20-2670D BOX DIAMPT ALPLT SGLDOOR 18X18X72 18 18 72 85 $1,310.00
20-2670SS BOX AL W/ST/ST SGLDOOR 18X18X72 18 18 72 85 $1,440.00
20-2675DL BOX AL DIAMPT AL PLT LHO DBLSW 18X18X72 18 18 72 81 $1,440.00
20-2675DR BOX AL DIAMPT AL PLT RHO DBLSW 18X18X72 18 18 72 81 $1,440.00
20-2675L BOX AL LHO DBLSW 18X18X72 18 18 72 81 $1,520.00
20-2675R BOX AL RHO DBLSW 18X18X72 18 18 72 81 $1,520.00
20-2690 BOX AL 18X24X72 DRPDR 18 24 72 90 $1,560.00
20-2690D BOX AL 18X24X72 DIAMPT AL PLT DRPDR 18 24 72 90 $1,570.00
20-2690SS BOX AL 18X24X72 ST/ST DRPDR 18 24 72 90 $1,640.00
20-2695DL BOX AL 18X24X72 LHO DIAMPT ALPLT DBLDOOR 18 24 72 90 $1,610.00
20-2695DR BOX AL 18X24X72 RHO DIAMPT ALPLT DBLDOOR 18 24 72 90 $1,610.00
20-2695L BOX AL 18X24X72 LHO DBL DOOR 18 24 72 90 $1,690.00
20-2695R BOX AL 18X24X72 RHO DBL DOOR 18 24 72 90 $1,690.00
20-2695SSL UNDERBODY BOX AL 18HX24DX72L SS DBL SWING DRS LHO 18 24 72 90 $1,740.00
20-2695SSR UNDERBODY BOX AL 18HX24DX72L SS DBL SWING DRS RHO 18 24 72 90 $1,740.00
20-2850 UNDERBODY BOX AL 15X20X12 BEHIND FAIRING 15 20 12 26 $870.00
20-2860 UNDERBODY BOX AL 15X20X18 BEHIND FAIRING 15 20 18 32 $870.00
20-2870 UNDERBODY BOX AL 15X20X24 BEHIND FAIRING 15 20 24 38 $870.00
22-2012-GB BOX STEEL 15X15X18LNG T-LK 1DRPDR PWDRCOAT GLOSS BLACK 15 15 18 40 $610.00
22-2012-GW BOX STEEL 15X15X18LNG T-LK 1DRPDRPWDRCOAT GLOSS WHITE 15 15 18 40 $610.00
22-2012-TB BOXSTEEL15HX15DX18LDRP DRT-LCKPWDRCOAT TEXTURED BLACK 15 15 18 40 $610.00
22-2012L-GB BOXSTEEL15HX15DX18LSWNG DRLHOPWDRCOAT GLOSS BLACK 15 15 18 40 $620.00
22-2012L-GW BOXSTEEL15HX15DX18LSWNG DRLHOPWDRCOAT GLOSS WHITE 15 15 18 40 $620.00
22-2012R-GB BOXSTEEL15HX15DX18LSWNG DRRHOPWDRCOAT GLOSS BLACK 15 15 18 40 $620.00
22-2012R-GW BOXSTEEL15HX15DX18LSWNG DRRHOPWDRCOAT GLOSS WHITE 15 15 18 40 $620.00
22-2014-GB BOX STEEL 15X15X24LNG T-LK 1DRPDR PWDRCOAT GLOSS BLACK 15 15 24 50 $620.00
22-2014-GW BOX STEEL 15X15X24LNG T-LK 1DRPDRPWDRCOAT GLOSS WHITE 15 15 24 50 $620.00
22-2014-TB BOXSTEEL15HX15DX24LT-LCK1DRP DRPWDRCOAT TEXTURED BLACK 15 15 24 50 $620.00
22-2016-GB BOX STEEL 15X15X30LNG T-LK 1DRPDR PWDRCOAT GLOSS BLACK 15 15 30 60 $650.00
22-2016-GW BOX STEEL 15X15X30LNG T-LK 1DRPDRPWDRCOAT GLOSS WHITE 15 15 30 60 $650.00
22-2016L-GB BOXSTEEL15HX15DX30LSWNG DRLHOPWDRCOAT GLOSS BLACK 15 15 30 60 $660.00
22-2016L-GW BOXSTEEL15HX15DX30LSWNG DRLHOPWDRCOAT GLOSS WHITE 15 15 30 60 $660.00
22-2016R-GB BOXSTEEL15HX15DX30LSWNG DRRHOPWDRCOAT GLOSS BLACK 15 15 30 60 $660.00
22-2016R-GW BOXSTEEL15HX15DX30LSWNG DRRHOPWDRCOAT GLOSS WHITE 15 15 30 60 $660.00
22-2016SS-GB BOXSTEEL15HX15DX30LSS DRP DRT-CLKPWDRCOAT GLOSS BLACK BODY ONLY 15 15 30 64 $810.00
22-2018B-GB BOX STEEL 18X18X18 SGL DRPWDRCOAT GLOSS BLK 18 18 18 47 $640.00
22-2018B-GW BOX STEEL 18X18X18 SGL DRPWDRCOAT GLOSS WHITE 18 18 18 47 $640.00
22-2018H-GB BOX STEEL 18X18X18 HASP SGLDRPWDRCOAT GLOSS BLACK 18 18 18 47 $620.00
22-2018H-GW BOX STEEL 18X18X18 HASP SGLDRPWDRCOAT GLOSS WHITE 18 18 18 47 $620.00
22-2028B-GB BOX STEEL 18X18X24 SGL DRPWDRCOAT GLOSS BLK 18 18 24 57 $670.00
22-2028B-GW BOX STEEL 18X18X24 SGL DRPWDRCOAT GLOSS WHITE 18 18 24 57 $670.00
22-2028B-TB BOXSTEEL18HX18DX24LDP DRT-LCKPWDRCOAT TEXTURED BLACK 18 18 24 57 $670.00
22-2028H-GB BOX STEEL 18X18X24 HASP SGLDRPWDRCOAT GLOSS BLACK 18 18 24 57 $660.00
22-2028H-GW BOX STEEL 18X18X24 HASP SGLDRPWDRCOAT GLOSS WHITE 18 18 24 57 $660.00
22-2029B-GB BOX STEEL 18X18X30 SGL DRPWDRCOAT GLOSS BLK 18 18 30 67 $700.00
22-2029B-GW BOX STEEL 18X18X30 SGL DRPWDRCOAT GLOSS WHITE 18 18 30 67 $700.00
22-2029H-GB BOX STEEL 18X18X30 HASP SGLDRPWDRCOAT GLOSS BLACK 18 18 30 67 $680.00
22-2029H-GW BOX STEEL 18X18X30 HASP SGLDRPWDRCOAT GLOSS WHITE 18 18 30 67 $680.00
22-2032B-GB BOX STEEL 24X24X24 T-LK SGLDRPWDRCOAT GLOSS BLACK 24 24 24 82 $710.00
22-2032B-GW BOX STEEL 24X24X24 T-LK SGLDRPWDRCOAT GLOSS WHITE 24 24 24 82 $710.00
22-2033B-GB BOX STEEL 24X24X30 T-LK SGLDRPWDRCOAT GLOSS BLACK 24 24 30 90 $740.00
22-2033B-GW BOX STEEL 24X24X30 T-LK SGLDRPWDRCOAT GLOSS WHITE 24 24 30 90 $740.00
22-2050B-GB BOX STEEL 18X24X24 T-LK SGLDRPWDRCOAT GLOSS BLACK 18 24 24 65 $680.00
22-2050B-GW BOX STEEL 18X24X24 T-LK SGLDRPWDRCOAT GLOSS WHITE 18 24 24 65 $680.00
22-2053B-GB BOX STEEL 18X24X30 T-LK SGLDRPWDRCOAT GLOSS BLACK 18 24 30 75 $780.00
22-2053B-GW BOX STEEL 18X24X30 T-LK SGLDRPWDRCOAT GLOSS WHITE 18 24 30 75 $780.00
22-2128B-GB BOXSTEEL 18X18X36 SGL DRPWDRCOAT GLOSS BLK 18 18 36 78 $710.00
22-2128B-GW BOX STEEL 18X18X36 SGL DRPWDRCOAT GLOSS WHITE 18 18 36 78 $710.00
22-2128B-TB BOXSTEEL18HX18DX36LT-LCKSGL DRP DRPWDRCOAT TEXTURED BLACK 18 18 36 78 $710.00
22-2128H-GB BOX STEEL 18X18X36 HASP SGLDRPWDRCOAT GLOSS BLACK 18 18 36 78 $700.00
22-2128H-GW BOX STEEL 18X18X36 HASP SGLDRPWDRCOAT GLOSS WHITE 18 18 36 78 $700.00
22-2128SS-GB BOX STEEL 18X18X36 T-LK STNLSS DOORPWDRCOAT GLOSS BLACK BODY ONLY 18 18 36 78 $880.00
22-2128SS-GW BOX STEEL 18X18X36 T-LK STNLSS DOORPWDRCOAT GLOSS WHITE 18 18 36 78 $870.00
22-2132B-GB BOX STEEL 24X24X36 T-LK SGLDRPWDRCOAT GLOSS BLACK 24 24 36 107 $810.00
22-2132B-GW BOX STEEL 24X24X36 T-LK SGLDRPWDRCOAT GLOSS WHITE 24 24 36 107 $810.00
22-2135L-GB BOX STEEL 24X24X36 TLK DBLDR LHOPWDRCOAT GLOSS BLACK 24 24 36 109 $920.00
22-2135L-GW BOX STEEL 24X24X36 TLK DBLDR LHOPWDRCOAT GLOSS WHITE 24 24 36 109 $920.00
22-2135R-GB BOX STEEL 24X24X36 TLK DBLDR RHOPWDRCOAT GLOSS BLACK 24 24 36 109 $920.00
22-2135R-GW BOX STEEL 24X24X36 TLK DBLDR RHOPWDRCOAT GLOSS WHITE 24 24 36 109 $920.00
22-2138L-GB BOX STEEL 18X18X36 DBLDR TLK LHOPWDRCOAT GLOSS BLACK 18 18 36 80 $880.00
22-2138L-GW BOX STEEL 18X18X36 DBLDR TLK LHOPWDRCOAT GLOSS WHITE 18 18 36 80 $880.00
22-2138R-GB BOX STEEL 18X18X36 DBLDR TLK RHOPWDRCOAT GLOSS BLACK 18 18 36 80 $880.00
22-2138R-GW BOX STEEL 18X18X36 DBLDR TLK RHOPWDRCOAT GLOSS WHITE 18 18 36 80 $880.00
22-2150B-GB BOXSTEEL18X24X36TLCKSGLDRPCB 18 24 36 99 $820.00
22-2150B-GW BOXSTEEL18X24X36TLCKSGLDRPCW 18 24 36 99 $820.00
22-2150B-TB BOXSTEEL18X24X36TLCKSGLDRPCTB 18 24 36 99 $820.00
22-2155L-GB BOX STEEL 18X24X36 TLK DBLDR LHOPWDRCOAT GLOSS BLACK 18 24 36 92 $920.00
22-2155L-GW BOX STEEL 18X24X36 TLK DBLDR LHOPWDRCOAT GLOSS WHITE 18 24 36 92 $920.00
22-2155R-GB BOX STEELX18X24X36 TLK DBLDR RHOPWDRCOAT GLOSS BLACK 18 24 36 92 $920.00
22-2155R-GW BOX STEELX18X24X36 TLK DBLDR RHOPWDRCOAT GLOSS WHITE 18 24 36 92 $920.00
22-2228B-GB BOXSTEEL18X18X48 SGL DRPWDRCOAT GLOSS BLK 18 18 48 96 $820.00
22-2228B-GW BOX STEEL 18X18X48 SGL DRPWDRCOAT GLOSS WHITE 18 18 48 96 $820.00
22-2228B-TB BOXSTEEL18X18X48T-LKSGLDRPWDRCOAT TEXTURED BLACK 18 18 48 96 $820.00
22-2228H-GB BOX STEEL 18X18X48 HASP SGLDRPWDRCOAT GLOSS BLACK 18 18 48 96 $800.00
22-2228H-GW BOX STEEL 18X18X48 HASP SGLDRPWDRCOAT GLOSS WHITE 18 18 48 96 $800.00
22-2228SS-GB BOX STEEL 18X18X48 T-LK STNLSS DOORBODY PWDRCOAT GLOSS BLACK 18 18 48 96 $980.00
22-2228SS-GW BOX STEEL 18X18X48 T-LK STNLSS DOORBODY PWDRCOAT GLOSS WHITE 18 18 48 96 $980.00
22-2232B-GB BOX STEEL 24X24X48 T-LK SGLDRPWDRCOAT GLOSS BLACK 24 24 48 133 $880.00
22-2232B-GW BOX STEEL 24X24X48 T-LK SGLDRPWDRCOAT GLOSS WHITE 24 24 48 133 $880.00
22-2232SS-GB BOX STEEL 24X24X48 T-LK STNLSS DOORBODY PWDRCOAT GLOSS BLACK 24 24 48 133 $1,050.00
22-2232SS-GW BOX STEEL 24X24X48 T-LK STNLSS DOORBODY PWDRCOAT GLOSS WHITE 24 24 48 133 $1,050.00
22-2235L-GB BOX STEEL 24X24X48 TLK DBLDR LHOPWDRCOAT GLOSS BLACK 24 24 48 136 $980.00
22-2235L-GW BOX STEEL 24X24X48 TLK DBLDR LHOPWDRCOAT GLOSS WHITE 24 24 48 136 $980.00
22-2235R-GB BOX STEEL 24X24X48 TLK DBLDR RHOPWDRCOAT GLOSS BLACK 24 24 48 136 $980.00
22-2235R-GW BOX STEEL 24X24X48 TLK DBLDR RHOPWDRCOAT GLOSS WHITE 24 24 48 136 $980.00
22-2238L-GB BOX STEEL 18X18X48 TLK DBLDR LHOPWDRCOAT GLOSS BLACK 18 18 48 99 $880.00
22-2238L-GW BOX STEEL 18X18X48 TLK DBLDR LHOPWDRCOAT GLOSS WHITE 18 18 48 99 $880.00
22-2238R-GB BOX STEEL 18X18X48 TLK DBLDR RHOPWDRCOAT GLOSS BLACK 18 18 48 99 $880.00
22-2238R-GW BOX STEEL 18X18X48 TLK DBLDR RHOPWDRCOAT GLOSS WHITE 18 18 48 99 $880.00
22-2238SSL-GB BOXSTEEL18HX18DX48LSS DBL SWNG DRSLHO3-PT T-LCKPWDRCOAT GLOSS BLACK BODY ONLY 18 18 48 105 $1,150.00
22-2238SSL-GW BOXSTEEL18HX18DX48LSS DBL SWNG DRSLHO3-PT T-LCKPWDRCOAT GLOSS WHITE BODY ONLY 18 18 48 105 $1,150.00
22-2238SSR-GB BOXSTEEL18HX18DX48LSS DBL SWNG DRSRHO3-PT T-LCKPWDRCOAT GLOSS BLACK BODY ONLY 18 18 48 105 $1,150.00
22-2238SSR-GW BOXSTEEL18HX18DX48LSS DBL SWNG DRSRHO3-PT T-LCKPWDRCOAT GLOSS WHITE BODY ONLY 18 18 48 105 $1,150.00
22-2250B-GB BOX STEEL 18X24X48 T-LK SGLDR PWDRCOAT GLOSS BLACK 18 24 48 120 $880.00
22-2250B-GW BOX STEEL 18X24X48 T-LK SGLDRPWDRCOAT GLOSS WHITE 18 24 48 120 $880.00
22-2255L-GB BOX STEEL 18X24X48 TLK DBLDR LHOPWDRCOAT GLOSS BLACK 18 24 48 120 $950.00
22-2255L-GW BOX STEEL 18X24X48 TLK DBLDR LHOPWDRCOAT GLOSS WHITE 18 24 48 120 $950.00
22-2255R-GB BOX STEEL 18X24X48 TLK DBLDR RHOPWDRCOAT GLOSS BLACK 18 24 48 120 $950.00
22-2255R-GW BOX STEEL 18X24X48 TLK DBLDR RHOPWDRCOAT GLOSS WHITE 18 24 48 120 $950.00
22-2328B-GB BOX STEEL 18X18X60 SGL DRPWDRCOAT GLOSS BLK 18 18 60 118 $880.00
22-2328B-GW BOX STEEL 18X18X60 SGL DRPWDRCOAT GLOSS WHITE 18 18 60 118 $880.00
22-2328H-GB BOX STEEL 18X18X60 HASP SGLDRPWDRCOAT GLOSS BLACK 18 18 60 118 $870.00
22-2328H-GW BOX STEEL 18X18X60 HASP SGLDRPWDRCOAT GLOSS WHITE 18 18 60 118 $870.00
22-2328SS-GB BOX STEEL 18X18X60 T-LK STNLSS DOORPWDRCOAT GLOSS BLACK BODY 18 18 60 118 $1,220.00
22-2328SS-GW BOX STEEL 18X18X60 T-LK STNLSS DOORBODY PWDRCOAT GLOSS WHITE 18 18 60 118 $1,220.00
22-2330B-GB BOX STEEL 18X18X72 SGL DRPWDRCOAT GLOSS BLK 18 18 72 138 $920.00
22-2330B-GW BOX STEEL 18X18X72 SGL DRPWDRCOAT GLOSS WHITE 18 18 72 138 $920.00
22-2332B-GB BOX STEEL 24X24X60 T-LK SGLDRPWDRCOAT GLOSS BLACK 24 24 60 160 $960.00
22-2332B-GW BOX STEEL 24X24X60 T-LK SGLDRPWDRCOAT GLOSS WHITE 24 24 60 160 $960.00
22-2332SS-GB BOXSTEEL24HX24DX60LT-LCKSS DRP DRPWDRCOAT GLOSS BLACK BODY 24 24 60 160 $1,190.00
22-2332SS-GW BOXSTEEL24HX24DX60LT-LCKSS DRP DRPWDRCOAT GLOSS WHITE BODY 24 24 60 160 $1,190.00
22-2335L-GB BOX STEEL 24X24X60 TLK DBLDR LHOPWDRCOAT GLOSS BLACK 24 24 60 160 $1,060.00
22-2335L-GW BOX STEEL 24X24X60 TLK DBLDR LHOPWDRCOAT GLOSS WHITE 24 24 60 160 $1,060.00
22-2335R-GB BOX STEEL 24X24X60 TLK DBLDR RHOPWDRCOAT GLOSS BLACK 24 24 60 160 $1,060.00
22-2335R-GW BOX STEEL 24X24X60 TLK DBLDR RHOPWDRCOAT GLOSS WHITE 24 24 60 160 $1,060.00
22-2338L-GB BOX STEEL 18X18X60 TLK DBLDR LHOPWDRCOAT GLOSS BLACK 18 18 60 118 $980.00
22-2338L-GW BOX STEEL 18X18X60 TLK DBLDR LHOPWDRCOAT GLOSS WHITE 18 18 60 118 $980.00
22-2338R-GB BOX STEEL 18X18X60 TLK DBLDR RHOPWDRCOAT GLOSS BLACK 18 18 60 118 $980.00
22-2338R-GW BOX STEEL 18X18X60 TLK DBLDR RHOPWDRCOAT GLOSS WHITE 18 18 60 118 $980.00
22-2342B-GB BOX STEEL 24X24X72 T-LK SGL DRPWDRCOAT GLOSS BLACK 24 24 72 180 $1,090.00
22-2342B-GW BOX STEEL 24X24X72 T-LK SGL DRPWDRCOAT GLOSS WHITE 24 24 72 180 $1,090.00
22-2342B-TB BOXSTEEL24X24X72T-LKSGL DRPWDRCOAT TEXTURED BLACK 24 24 72 180 $1,090.00
22-2345L-GB BOX STEEL 24X24X72 T-LK DBLDR LHOPWDRCOAT GLOSS BLACK 24 24 72 180 $1,190.00
22-2345L-GW BOX STEEL 24X24X72 T-LK DBLDR LHOPWDRCOAT GLOSS WHITE 24 24 72 180 $1,190.00
22-2345R-GB BOX STEEL 24X24X72 T-LK DBLDR RHOPWDRCOAT GLOSS BLACK 24 24 72 180 $1,190.00
22-2345R-GW BOX STEEL 24X24X72 T-LK DBLDR RHOPWDRCOAT GLOSS WHITE 24 24 72 180 $1,190.00
22-2348L-GB BOX STEEL 18X18X72 TLK DBLDR LHOPWDRCOAT GLOSS BLACK 18 18 72 140 $1,050.00
22-2348L-GW BOX STEEL 18X18X72 TLK DBLDR LHOPWDRCOAT GLOSS WHITE 18 18 72 140 $1,050.00
22-2348R-GB BOX STEEL 18X18X72 TLK DBLDR RHOPWDRCOAT GLOSS BLACK 18 18 72 140 $1,050.00
22-2348R-GW BOX STEEL 18X18X72 TLK DBLDR RHOPWDRCOAT GLOSS WHITE 18 18 72 140 $1,050.00
22-2350B-GB BOXSTEEL18X24X60T-LKSGLDRPWDRCOAT GLOSS BLACK 18 24 60 140 $950.00
22-2350B-GW BOXSTEEL18X24X60T-LKSGLDRPWDRCOAT GLOSS WHITE 18 24 60 140 $950.00
22-2355L-GB BOXSTEEL18X24X60TLKDBLDRLHOPWDRCOAT GLOSS BLACK 18 24 60 133 $1,050.00
22-2355L-GW BOXSTEEL18X24X60TLKDBLDRLHOPWDRCOAT GLOSS WHITE 18 24 60 133 $1,050.00
22-2355R-GB BOXSTL18X24X60TLKDBLDRRHOPWDRCOAT GLOSS BLACK 18 24 60 133 $1,050.00
22-2355R-GW BOXSTL18X24X60TLKDBLDRRHOPWDRCOAT GLOSS WHITE 18 24 60 133 $1,050.00
22-2358B-GB BOX STEEL 18X24X72 T-LK SGL DRPWDRCOAT GLOSS BLACK 18 24 72 170 $1,080.00
22-2358B-GW BOX STEEL 18X24X72 T-LK SGL DRPWDRCOAT GLOSS WHITE 18 24 72 170 $1,080.00
22-2358L-GB BOX STEEL 18X24X72 T-LK DBLDR LHOPWDRCOAT GLOSS BLACK 18 24 72 155 $1,180.00
22-2358L-GW BOX STEEL 18X24X72 T-LK DBLDR LHOPWDRCOAT GLOSS WHITE 18 24 72 155 $1,180.00
22-2358R-GB BOX STEEL 18X24X72 T-LK DBLDR RHOPWDRCOAT GLOSS BLACK 18 24 72 155 $1,180.00
22-2358R-GW BOX STEEL 18X24X72 T-LK DBLDR RHOPWDRCOAT GLOSS WHITE 18 24 72 155 $1,180.00
Download Catalog
You might also like
Heavy Duty Box Accessories Heavy Duty Box Accessories More Back Pack Box Back Pack Box More In Frame Boxes In Frame Boxes More Topside Boxes Topside Boxes More
Ready to Buy? ProTech dealers are ready to help.

With over 1200 certified dealers across the US and Canada there is sure to be a convenient location. Use our dealer search to find a retail location near you.

Stay connected.

Stay up to date with exclusive offers, new products and other exciting news.

© Copyright 2026 ProTech Privacy Policy | Terms | Sitemap
