Fender Mounting Brackets

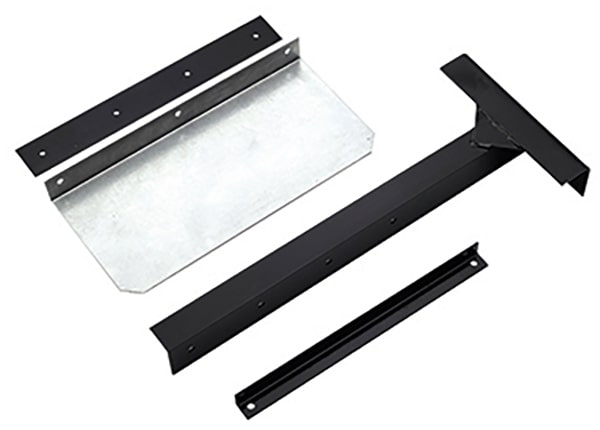

30-7395L
30-7391S
30-7590
30-7525
30-7393LS
30-7394-50S

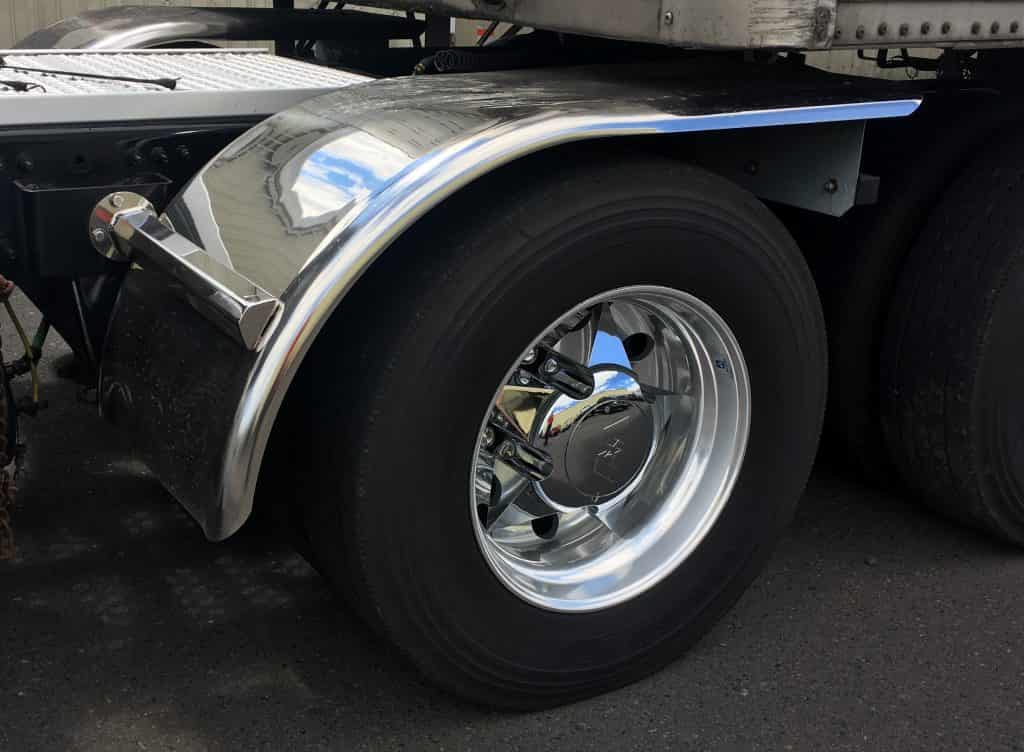

30-7394-50S mount with 30-7327 fender

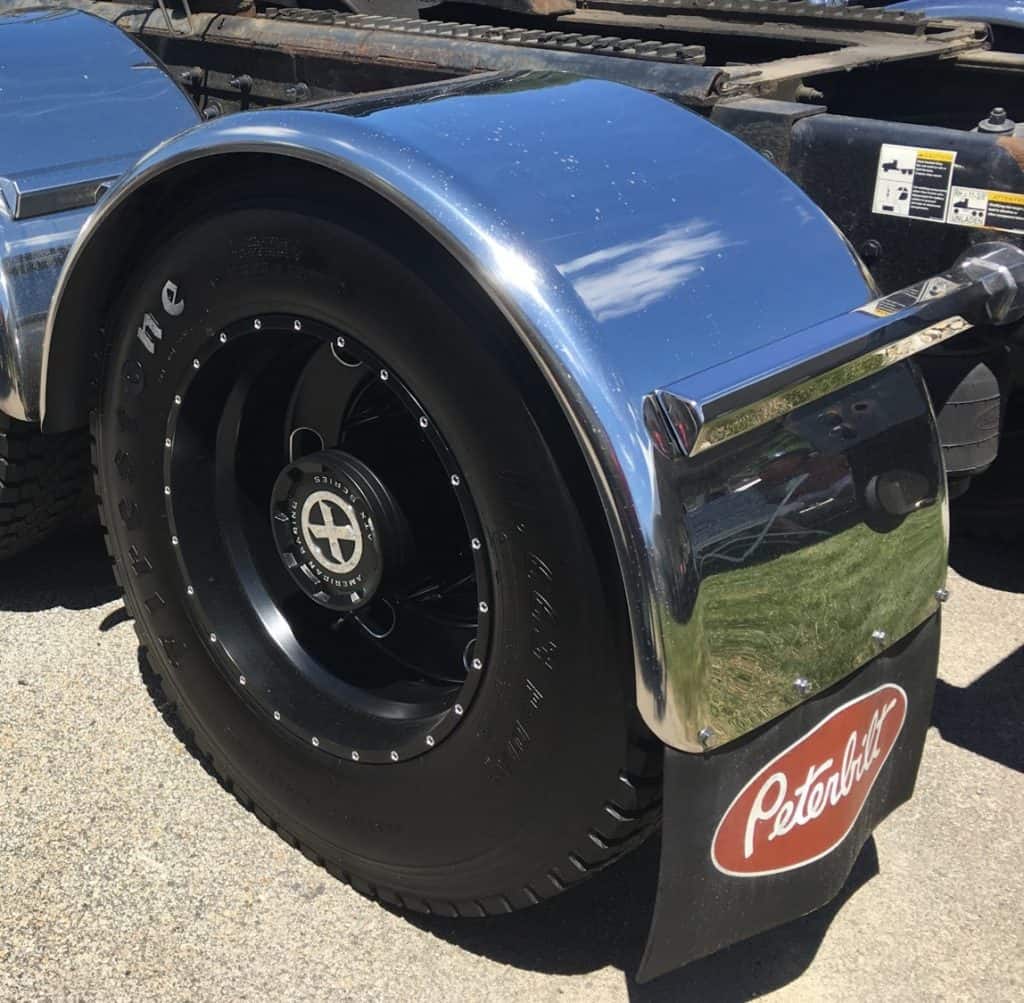

30-7590S mount with 30-7357 fender
30-7394-50S and 30-7590S mounts with 30-7357 fenders

Fender Mounting Brackets

ProTech fender brackets are sold individually as well as in two-fender kits. Be sure to order correctly
– Choose either black powder coat steel or stainless steel
– Select the appropriate configuration:
• Under-side bracket- black powder coat/adjustable galvanized rise plate
• Under-side single stud center fender mounting bracket
• Outer fender bracket
• Peterbilt® Air Track Suspension bracket
• Universal Air Leaf mounting bracket (Peterbilt/Freightliner/Low Air Leaf)
• Single-bolt fender mounting bracket

Material

Color

Where to Buy See all

Part Number	Description	LBS	MSRP
30-7319-93L	BRACKET, STAINLESS, 1/4 FENDER PETE AT/AR LH	32	$451.23
30-7319-93R	BRACKET, STAINLESS, 1/4 FENDER PETE AT/AR RH	32	$451.23
30-7391	KIT, BRACKET, ROUND BASE OUTER FENDER MTG	14	$135.97
30-7391S	KIT, STAINLESS BRACKET,ROUND BASE OUTER FENDER MTG	15	$390.39
30-7393L	KIT, BRACKET, OUTER, 93 PETE STRDL, LH	19	$187.01
30-7393LS	KIT, BRACKET, OUTER, PETE, STRDL, STAINLESS, LH	18	$485.70
30-7393R	KIT, BRACKET, OUTER, 93 PETE STRDL, RH	19	$187.01
30-7393RS	KIT, BRACKET, OUTER, PETE, STRDL, STAINLESS, RH	18	$485.70
30-7394-50	KIT, BRACKET, MULTI-APPLICATION, PETE/FRTLNR	28	$318.30
30-7394-50S	KIT, BRACKET, MULTI-APPLICATION, PETE/FRTLNR STAINLESS-ARM	28	$625.21
30-7395L	BRACKET, FENDER, L/H (DRIVER SIDE)UNDERSIDE	25	$178.81
30-7395R	BRACKET, FENDER,R/H (PASS. SIDE) UNDERSIDE,MTG	25	$178.81
30-7397LS	BRACKET, FENDER PETERBILT FLEX AIR LEFT	25	$733.82
30-7397RS	BRACKET, FENDER PETERBILT FLEX AIR RIGHT	25	$733.82
30-7419F	MOUNTING KIT, PB LOW & FL AIRLEAF 1/4 FENDER	35	$1,064.62
30-7419K	MOUNTING KIT, KW & OTHER CLEAN MT 1/4 FENDER	30	$665.90
30-7419P	MOUNTING KIT, PETE AIR RIDE/TRAC 1/4 FENDER	35	$797.05
30-7427F	FENDER KIT, STAINLESS, PB LOW & FL AIRLEAF 1/2TNDM	169	$2,493.18
30-7427K	FENDER KIT, STAINLESS, KW & OTHER CLEAN MT 1/2TNDM	134	$2,164.97
30-7427P	FENDER KIT, STAINLESS, PB AIRTRAC/AIRRIDE 1/2TM	149	$2,256.91
30-7429F	MOUNTING KIT, STAINLESS PB LO & FL AIRLEAF 1/2TM	55	$1,360.28
30-7429P	MOUNTING KIT, STAINLESS PETE AIRRIDE/TRAC 1/2TDM	65	$1,131.83
30-7482	MOUNTING KIT, FENDER.FULL RAD.SNGL.AXL	56	$572.50
30-7482S	MOUNTING KIT, FENDER,F/R-S/A,STAINLESS	56	$1,566.33
30-7484	MOUNTING KIT, FENDER.1/2TANDM,1 RADIUS	68	$553.84
30-7484S	MOUNTING KIT, FENDER,1/2TNDM,S/R,STAINLESS	68	$1,064.42
30-7486	MOUNTING KIT, FENDER.FULL TANDM,1 RADI	105	$835.35
30-7486S	MOUNTING KIT, FENDER,FULTNDM,S/R,STAINLESS	105	$1,408.58
30-7488	MOUNTING KIT, FENDER.FULL TANDM 2 RADI	95	$830.09
30-7488S	MOUNTING KIT, FENDER,FLLTNDM,D/R,STAINLESS	95	$1,865.61
30-7525	BRACKET, FENDER, UNDERSIDE, SINGLE STUD	20	$139.40
30-7590	BRACKET, FENDER, SINGLE STUD BLACK-7391 ARM	20	$149.37

Download Catalog
